The base class for a Nexus class (group). More...

#include <NexusClasses.h>

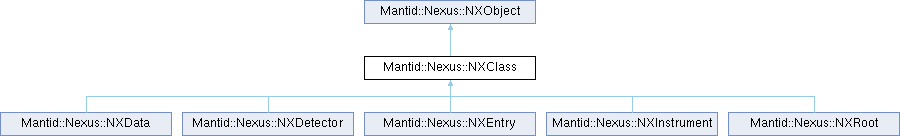

Inheritance diagram for Mantid::Nexus::NXClass:

Public Member Functions
void	close ()
	Close this class.

bool	containsDataSet (const std::string &query) const
	Returns whether an individual dataset is present.

bool	containsGroup (const std::string &query) const
	Returns whether an individual group (or group) is present.

std::vector< NXInfo > &	datasets () const
	Returns a list of all datasets in this NXClass.

NXInfo	getDataSetInfo (const std::string &name) const
	Returns NXInfo for a dataset.

double	getDouble (const std::string &name) const
	Returns a double.

float	getFloat (const std::string &name) const
	Returns a float.

int32_t	getInt (const std::string &name) const
	Returns a int.

std::string	getString (const std::string &name) const
	Returns a string.

std::vector< NXClassInfo > &	groups () const
	Returns a list of all classes (or groups) in this NXClass.

bool	isValid (const std::string &address) const
	Check if a address exists relative to the current class address.

std::string	NX_class () const override
	The NX class identifier.

	NXClass (NXClass const &parent, std::string const &name)
	Constructor.

void	open ()
	Opens this NXClass using File::openGroupAddress(). Can be slow (or is slow)

bool	openLocal (const std::string &nxclass="")
	Opens this NXClass using File::openGroup().

NXChar	openNXChar (const std::string &name) const
	Creates and opens a char dataset.

template<class NX >
NX	openNXClass (const std::string &name) const
	Templated method for creating derived NX classes.

template<class T >
NXDataSetTyped< T >	openNXDataSet (const std::string &name) const
	Templated method for creating datasets.

NXDouble	openNXDouble (const std::string &name) const
	Creates and opens a double dataset.

NXFloat	openNXFloat (const std::string &name) const
	Creates and opens a float dataset.

NXClass	openNXGroup (const std::string &name) const
	Creates and opens an arbitrary (non-standard) class (group).

NXInt	openNXInt (const std::string &name) const
	Creates and opens an integer dataset.

NXUInt64	openNXSize (const std::string &name) const
	Creates and opens a size_t dataset.

Public Member Functions inherited from Mantid::Nexus::NXObject
NexusAddress const &	address () const
	Returns the absolute address to the object.

std::string	name () const
	Returns the name of the object.

	NXObject (File fileID, NXClass const parent, std::string const &name)
	NXObject constructor.

	NXObject (std::shared_ptr< File > const &fileID, NXClass const *parent, std::string const &name)
	NXObject constructor.

virtual	~NXObject ()=default

Protected Member Functions
void	clear ()
	Deletes content of m_groups and m_datasets.

void	readAllInfo ()
	Fills in m_groups and m_datasets.

Protected Attributes
std::shared_ptr< std::vector< NXInfo > >	m_datasets
	Holds info about the datasets in this NXClass.

std::shared_ptr< std::vector< NXClassInfo > >	m_groups
	Holds info about the child NXClasses.

Protected Attributes inherited from Mantid::Nexus::NXObject
NexusAddress	m_address
	Keeps the absolute address to the object.

bool	m_open
	Set to true if the object has been open.

Private Member Functions
	NXClass ()
	Private constructor.

Friends
class	NXRoot

Additional Inherited Members
Public Attributes inherited from Mantid::Nexus::NXObject
std::shared_ptr< File >	m_fileID
	Nexus file id.

Detailed Description

The base class for a Nexus class (group).

A Nexus class can contain datasets and other Nexus classes. The Nexus file format (www.nexusformat.org) specifies the content of the Nexus classes.

Derived classes have specialized methods for creating classes and datasets specific for the particular Nexus class. NXClass is a conctrete C++ class so arbitrary, non-standard Nexus classes (groups) can be created and loaded from Nexus files.

Definition at line 448 of file NexusClasses.h.

Constructor & Destructor Documentation

◆ NXClass() [1/2]

Mantid::Nexus::NXClass::NXClass	(	NXClass const &	parent,
		std::string const &	name
	)

Constructor.

Parameters

parent	:: The parent Nexus class. In terms of HDF it is the group containing the NXClass.
name	:: The name of the NXClass relative to its parent

Definition at line 137 of file NexusClasses.cpp.

References clear().

◆ NXClass() [2/2]

Mantid::Nexus::NXClass::NXClass ( )

inlineprivate

Private constructor.

Definition at line 591 of file NexusClasses.h.

Member Function Documentation

◆ clear()

void Mantid::Nexus::NXClass::clear ( )

protected

Deletes content of m_groups and m_datasets.

Definition at line 193 of file NexusClasses.cpp.

References m_datasets, and m_groups.

Referenced by NXClass(), and readAllInfo().

◆ close()

void Mantid::Nexus::NXClass::close ( )

Close this class.

Definition at line 183 of file NexusClasses.cpp.

References Mantid::Nexus::NXObject::m_address, Mantid::Nexus::NXObject::m_fileID, Mantid::Nexus::NXObject::m_open, Mantid::Nexus::NXObject::name(), and NX_class().

◆ containsDataSet()

bool Mantid::Nexus::NXClass::containsDataSet ( const std::string & query ) const

Returns whether an individual dataset is present.

Definition at line 255 of file NexusClasses.cpp.

References Mantid::Nexus::NXInfo::allGood, and getDataSetInfo().

Referenced by Mantid::DataHandling::LoadILLTOF3::initWorkspace(), Mantid::DataHandling::LoadMuonNexusV2NexusHelper::loadDeadTimesFromNexus(), Mantid::DataHandling::LoadMuonNexusV2NexusHelper::loadDetectorGroupingFromNexus(), Mantid::DataHandling::LoadILLIndirect2::loadDiffractionData(), Mantid::DataHandling::LoadMLZ::loadRunDetails(), Mantid::DataHandling::LoadILLTOF3::loadTimeDetails(), and Mantid::DataHandling::LoadILLTOF3::prepareAxis().

◆ containsGroup()

bool Mantid::Nexus::NXClass::containsGroup ( const std::string & query ) const

Returns whether an individual group (or group) is present.

Parameters

query :: the class name to search for

Returns: true if the name is found and false otherwise

Definition at line 230 of file NexusClasses.cpp.

References group, and m_groups.

◆ datasets()

std::vector< NXInfo > & Mantid::Nexus::NXClass::datasets ( ) const

inline

Returns a list of all datasets in this NXClass.

Definition at line 563 of file NexusClasses.h.

Referenced by Mantid::DataHandling::ANSTO::filterDatasets(), getDataSetInfo(), and Mantid::DataHandling::ANSTO::Anxs::isTimedDataSet().

◆ getDataSetInfo()

NXInfo Mantid::Nexus::NXClass::getDataSetInfo ( const std::string & name ) const

Returns NXInfo for a dataset.

Parameters

name	:: The name of the dataset

Returns: NXInfo::allGood is set to false if the dataset does not exist

Definition at line 240 of file NexusClasses.cpp.

References Mantid::Nexus::NXInfo::allGood, datasets(), and Mantid::Nexus::NXObject::name().

Referenced by containsDataSet(), Mantid::DataHandling::LoadMuonNexusV2NexusHelper::loadFirstGoodDataFromNexus(), Mantid::DataHandling::LoadMuonNexusV2NexusHelper::loadLastGoodDataFromNexus(), Mantid::DataHandling::LoadNexusProcessed::loadLeanElasticPeaksEntry(), Mantid::DataHandling::LoadNexusProcessed::loadPeaksEntry(), Mantid::DataHandling::LoadNexusProcessed::loadTableEntry(), Mantid::DataHandling::LoadNexusProcessed::loadVectorColumn(), and Mantid::DataHandling::LoadNexusProcessed::readBinMasking().

◆ getDouble()

double Mantid::Nexus::NXClass::getDouble ( const std::string & name ) const

Returns a double.

Parameters

name	:: The name of the NXDouble dataset

Returns: The double

Definition at line 209 of file NexusClasses.cpp.

References Mantid::Nexus::NXDataSetTyped< T >::load(), Mantid::Nexus::NXObject::name(), and openNXDouble().

◆ getFloat()

float Mantid::Nexus::NXClass::getFloat ( const std::string & name ) const

Returns a float.

Parameters

name	:: The name of the NXFloat dataset

Returns: The float

Definition at line 215 of file NexusClasses.cpp.

References Mantid::Nexus::NXDataSetTyped< T >::load(), Mantid::Nexus::NXObject::name(), and openNXFloat().

◆ getInt()

int32_t Mantid::Nexus::NXClass::getInt ( const std::string & name ) const

Returns a int.

Parameters

name	:: The name of the NXInt dataset

Returns: The int

Definition at line 221 of file NexusClasses.cpp.

References Mantid::Nexus::NXDataSetTyped< T >::load(), Mantid::Nexus::NXObject::name(), and openNXInt().

Referenced by Mantid::DataHandling::LoadMuonNexusV2NexusHelper::getNumberOfPeriods(), Mantid::DataHandling::LoadMuonNexusV2NexusHelper::loadFirstGoodDataFromNexus(), Mantid::DataHandling::LoadMuonNexusV2NexusHelper::loadLastGoodDataFromNexus(), Mantid::DataHandling::LoadISISNexusHelper::loadRunDetails(), Mantid::DataHandling::LoadMLZ::loadRunDetails(), and Mantid::DataHandling::LoadMLZ::loadTimeDetails().

◆ getString()

std::string Mantid::Nexus::NXClass::getString ( const std::string & name ) const

Returns a string.

Parameters

name	:: The name of the NXChar dataset

Returns: The string

Definition at line 198 of file NexusClasses.cpp.

References Mantid::Nexus::NXObject::name(), and openNXChar().

◆ groups()

std::vector< NXClassInfo > & Mantid::Nexus::NXClass::groups ( ) const

inline

Returns a list of all classes (or groups) in this NXClass.

Definition at line 559 of file NexusClasses.h.

Referenced by Mantid::DataHandling::LoadISISNexus2::exec(), Mantid::DataHandling::LoadNexusProcessed::execLoader(), Mantid::DataHandling::LoadHelper::findInstrumentNexusAddress(), Mantid::DataHandling::LoadILLTOF3::getMonitorInfo(), Mantid::DataHandling::LoadILLPolarizedDiffraction::loadData(), Mantid::DataHandling::LoadILLSANS::loadDataFromMonitors(), Mantid::DataHandling::LoadNexusProcessed::loadNonEventEntry(), and Mantid::Nexus::NXRoot::openFirstEntry().

◆ isValid()

bool Mantid::Nexus::NXClass::isValid ( const std::string & address ) const

Check if a address exists relative to the current class address.

Parameters

address :: A string representing the address to test

Returns: True if it is valid

Definition at line 153 of file NexusClasses.cpp.

References Mantid::Nexus::NXObject::address(), and Mantid::Nexus::NXObject::m_fileID.

Referenced by Mantid::DataHandling::LoadNexusProcessed::doAccelleratedMultiPeriodLoading(), Mantid::DataHandling::LoadNexusProcessed::loadEventEntry(), Mantid::DataHandling::LoadNexusProcessed::loadNonEventEntry(), and Mantid::DataHandling::LoadILLReflectometry::sampleAngle().

◆ NX_class()

std::string Mantid::Nexus::NXClass::NX_class ( ) const

inlineoverridevirtual

The NX class identifier.

Implements Mantid::Nexus::NXObject.

Reimplemented in Mantid::Nexus::NXData, Mantid::Nexus::NXDetector, Mantid::Nexus::NXInstrument, Mantid::Nexus::NXEntry, and Mantid::Nexus::NXRoot.

Definition at line 460 of file NexusClasses.h.

Referenced by close(), and openLocal().

◆ open()

void Mantid::Nexus::NXClass::open ( )

Opens this NXClass using File::openGroupAddress(). Can be slow (or is slow)

Definition at line 155 of file NexusClasses.cpp.

References Mantid::Nexus::NXObject::m_address, Mantid::Nexus::NXObject::m_fileID, Mantid::Nexus::NXObject::m_open, and readAllInfo().

◆ openLocal()

bool Mantid::Nexus::NXClass::openLocal ( const std::string & nxclass = "" )

Opens this NXClass using File::openGroup().

It is fast, but the parent of this class must be open at the time of calling.

It is fast, but the parent of this class must be open at the time of calling. openNXClass uses open() (the slow one). To open calss using openLocal() do: NXTheClass class(parent,name); class.openLocal(); // work with class class.close();

openNXClass uses open() (the slow one). To open class using openLocal() do: NXTheClass class(parent,name); class.openLocal(); // work with class class.close();

Parameters

nxclass :: The NX class name. If empty NX_class() will be used

Returns: true if OK

Definition at line 171 of file NexusClasses.cpp.

References Mantid::Nexus::NXObject::m_fileID, Mantid::Nexus::NXObject::m_open, Mantid::Nexus::NXObject::name(), NX_class(), and readAllInfo().

Referenced by Mantid::DataHandling::LoadNexusProcessed::doAccelleratedMultiPeriodLoading().

◆ openNXChar()

NXChar Mantid::Nexus::NXClass::openNXChar ( const std::string & name ) const

inline

Creates and opens a char dataset.

Parameters

name	:: The name of the dataset

Returns: The char

Definition at line 525 of file NexusClasses.h.

References name.

Referenced by getString(), Mantid::DataHandling::LoadNexusProcessed::loadLeanElasticPeaksEntry(), Mantid::DataHandling::LoadMuonNexusV2NexusHelper::loadMainFieldDirectionFromNexus(), Mantid::DataHandling::LoadNexusProcessed::loadNonSpectraAxis(), Mantid::DataHandling::ANSTO::Anxs::loadNXString(), Mantid::DataHandling::LoadNexusProcessed::loadPeaksEntry(), Mantid::DataHandling::LoadISISNexusHelper::loadRunDetails(), and Mantid::DataHandling::LoadNexusProcessed::loadTableEntry().

◆ openNXClass()

template<class NX >

NX Mantid::Nexus::NXClass::openNXClass ( const std::string & name ) const

inline

Templated method for creating derived NX classes.

It also opens the created class.

Parameters

name	:: The name of the class

Template Parameters

NX	Concrete Nexus class

Returns: The new object

Definition at line 475 of file NexusClasses.h.

References name.

◆ openNXDataSet()

template<class T >

NXDataSetTyped< T > Mantid::Nexus::NXClass::openNXDataSet ( const std::string & name ) const

inline

Templated method for creating datasets.

It also opens the created set.

Parameters

name	:: The name of the dataset

Template Parameters

T	The type of the data (int, double, ...).

Returns: The new object

Definition at line 496 of file NexusClasses.h.

References name, and Mantid::Nexus::NXDataSet::open().

◆ openNXDouble()

NXDouble Mantid::Nexus::NXClass::openNXDouble ( const std::string & name ) const

inline

Creates and opens a double dataset.

Parameters

name	:: The name of the dataset

Returns: The double

Definition at line 519 of file NexusClasses.h.

References name.

◆ openNXFloat()

NXFloat Mantid::Nexus::NXClass::openNXFloat ( const std::string & name ) const

inline

Creates and opens a float dataset.

Parameters

name	:: The name of the dataset

Returns: The float

Definition at line 513 of file NexusClasses.h.

References name.

◆ openNXGroup()

NXClass Mantid::Nexus::NXClass::openNXGroup ( const std::string & name ) const

inline

Creates and opens an arbitrary (non-standard) class (group).

Parameters

name	:: The name of the class.

Returns: The opened NXClass

Definition at line 487 of file NexusClasses.h.

References name.

◆ openNXInt()

NXInt Mantid::Nexus::NXClass::openNXInt ( const std::string & name ) const

inline

Creates and opens an integer dataset.

Parameters

name	:: The name of the dataset

Returns: The int

Definition at line 507 of file NexusClasses.h.

References name.

◆ openNXSize()

NXUInt64 Mantid::Nexus::NXClass::openNXSize ( const std::string & name ) const

inline

Creates and opens a size_t dataset.

Parameters

name	:: The name of the dataset

Returns: The size_t

Definition at line 531 of file NexusClasses.h.

References name.

Referenced by Mantid::DataHandling::LoadNexusProcessed::readBinMasking().

◆ readAllInfo()

void Mantid::Nexus::NXClass::readAllInfo ( )

protected

Fills in m_groups and m_datasets.

Definition at line 139 of file NexusClasses.cpp.

References clear(), m_datasets, Mantid::Nexus::NXObject::m_fileID, and m_groups.

Referenced by Mantid::Nexus::NXRoot::NXRoot(), open(), and openLocal().

Friends And Related Symbol Documentation

◆ NXRoot

friend class NXRoot

friend

Definition at line 449 of file NexusClasses.h.

Member Data Documentation

◆ m_datasets

std::shared_ptr<std::vector<NXInfo> > Mantid::Nexus::NXClass::m_datasets

protected

Holds info about the datasets in this NXClass.

Definition at line 586 of file NexusClasses.h.

Referenced by clear(), and readAllInfo().

◆ m_groups

std::shared_ptr<std::vector<NXClassInfo> > Mantid::Nexus::NXClass::m_groups

protected

Holds info about the child NXClasses.

Definition at line 585 of file NexusClasses.h.

Referenced by clear(), containsGroup(), and readAllInfo().

The documentation for this class was generated from the following files:

Framework/Nexus/inc/MantidNexus/NexusClasses.h
Framework/Nexus/src/NexusClasses.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ NXClass() [1/2]

◆ NXClass() [2/2]

Member Function Documentation

◆ clear()

◆ close()

◆ containsDataSet()

◆ containsGroup()

◆ datasets()

◆ getDataSetInfo()

◆ getDouble()

◆ getFloat()

◆ getInt()

◆ getString()

◆ groups()

◆ isValid()

◆ NX_class()

◆ open()

◆ openLocal()

◆ openNXChar()

◆ openNXClass()

◆ openNXDataSet()

◆ openNXDouble()

◆ openNXFloat()

◆ openNXGroup()

◆ openNXInt()

◆ openNXSize()

◆ readAllInfo()

Friends And Related Symbol Documentation

◆ NXRoot

Member Data Documentation

◆ m_datasets

◆ m_groups
