The base abstract class for Nexus classes and data sets. More...

#include <NexusClasses.h>

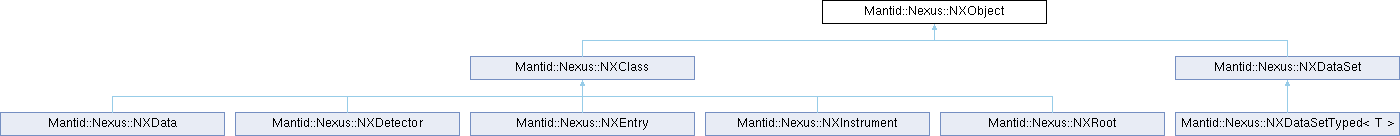

Inheritance diagram for Mantid::Nexus::NXObject:

Public Member Functions
NexusAddress const &	address () const
	Returns the absolute address to the object.

std::string	name () const
	Returns the name of the object.

virtual std::string	NX_class () const =0
	Return the NX class name for a class (HDF group) or "SDS" for a data set;.

	NXObject (File fileID, NXClass const parent, std::string const &name)
	NXObject constructor.

	NXObject (std::shared_ptr< File > const &fileID, NXClass const *parent, std::string const &name)
	NXObject constructor.

virtual	~NXObject ()=default

Public Attributes
std::shared_ptr< File >	m_fileID
	Nexus file id.

Protected Attributes
NexusAddress	m_address
	Keeps the absolute address to the object.

bool	m_open
	Set to true if the object has been open.

Private Member Functions
	NXObject ()
	Private default constructor.

Friends
class	NXClass
	a friend class declaration

class	NXDataSet
	a friend class declaration

class	NXRoot
	a friend class declaration

Detailed Description

The base abstract class for Nexus classes and data sets.

NX classes and data sets are defined at www.nexusformat.org

Definition at line 87 of file NexusClasses.h.

Constructor & Destructor Documentation

◆ NXObject() [1/3]

Mantid::Nexus::NXObject::NXObject	(	File *	fileID,
		NXClass const *	parent,
		std::string const &	name
	)

NXObject constructor.

Parameters

fileID	:: The Nexus file id
parent	:: The parent Nexus class. In terms of HDF it is the group containing the object.
name	:: The name of the object relative to its parent

Definition at line 81 of file NexusClasses.cpp.

References address(), m_address, and name().

◆ NXObject() [2/3]

Mantid::Nexus::NXObject::NXObject	(	std::shared_ptr< File > const &	fileID,
		NXClass const *	parent,
		std::string const &	name
	)

NXObject constructor.

Parameters

fileID	:: The Nexus file id
parent	:: The parent Nexus class. In terms of HDF it is the group containing the object.
name	:: The name of the object relative to its parent

Definition at line 93 of file NexusClasses.cpp.

References address(), m_address, and name().

◆ ~NXObject()

virtual Mantid::Nexus::NXObject::~NXObject ( )

virtualdefault

◆ NXObject() [3/3]

Mantid::Nexus::NXObject::NXObject ( )

private

Private default constructor.

NXObject private default constructor.

Definition at line 73 of file NexusClasses.cpp.

Member Function Documentation

◆ address()

NexusAddress const & Mantid::Nexus::NXObject::address ( ) const

inline

Returns the absolute address to the object.

Definition at line 102 of file NexusClasses.h.

Referenced by Mantid::Nexus::NXDataSetTyped< T >::alloc(), Mantid::DataHandling::LoadISISNexus2::exec(), Mantid::Nexus::NXClass::isValid(), Mantid::DataHandling::LoadNexusProcessed::loadEntry(), Mantid::DataHandling::LoadNexusProcessed::loadLeanElasticPeaksEntry(), Mantid::DataHandling::LoadNexusProcessed::loadPeaksEntry(), NXObject(), NXObject(), Mantid::Nexus::NXDataSetTyped< T >::operator()(), Mantid::Nexus::NXDataSetTyped< T >::operator()(), and Mantid::Nexus::NXDataSetTyped< T >::operator[]().

◆ name()

std::string Mantid::Nexus::NXObject::name ( ) const

Returns the name of the object.

Definition at line 100 of file NexusClasses.cpp.

References m_address, and Mantid::Nexus::NexusAddress::stem().

Referenced by Mantid::Nexus::NXClass::close(), Mantid::DataHandling::LoadNexusProcessed2::extractMappingInfoNew(), Mantid::Nexus::NXClass::getDataSetInfo(), Mantid::Nexus::NXClass::getDouble(), Mantid::Nexus::NXClass::getFloat(), Mantid::Nexus::NXClass::getInt(), Mantid::Nexus::NXClass::getString(), NXObject(), NXObject(), and Mantid::Nexus::NXClass::openLocal().

◆ NX_class()

virtual std::string Mantid::Nexus::NXObject::NX_class ( ) const

pure virtual

Return the NX class name for a class (HDF group) or "SDS" for a data set;.

Implemented in Mantid::Nexus::NXDataSet, Mantid::Nexus::NXClass, Mantid::Nexus::NXData, Mantid::Nexus::NXDetector, Mantid::Nexus::NXInstrument, Mantid::Nexus::NXEntry, and Mantid::Nexus::NXRoot.

Friends And Related Symbol Documentation

◆ NXClass

friend class NXClass

friend

a friend class declaration

Definition at line 89 of file NexusClasses.h.

◆ NXDataSet

friend class NXDataSet

friend

a friend class declaration

Definition at line 88 of file NexusClasses.h.

◆ NXRoot

friend class NXRoot

friend

a friend class declaration

Definition at line 90 of file NexusClasses.h.

Member Data Documentation

◆ m_address

NexusAddress Mantid::Nexus::NXObject::m_address

protected

Keeps the absolute address to the object.

Definition at line 109 of file NexusClasses.h.

Referenced by Mantid::Nexus::NXClass::close(), name(), NXObject(), NXObject(), Mantid::Nexus::NXDataSet::open(), and Mantid::Nexus::NXClass::open().

◆ m_fileID

std::shared_ptr<File> Mantid::Nexus::NXObject::m_fileID

Nexus file id.

Definition at line 106 of file NexusClasses.h.

◆ m_open

bool Mantid::Nexus::NXObject::m_open

protected

Set to true if the object has been open.

Definition at line 110 of file NexusClasses.h.

Referenced by Mantid::Nexus::NXClass::close(), Mantid::Nexus::NXClass::open(), and Mantid::Nexus::NXClass::openLocal().

The documentation for this class was generated from the following files:

Framework/Nexus/inc/MantidNexus/NexusClasses.h
Framework/Nexus/src/NexusClasses.cpp
